Description

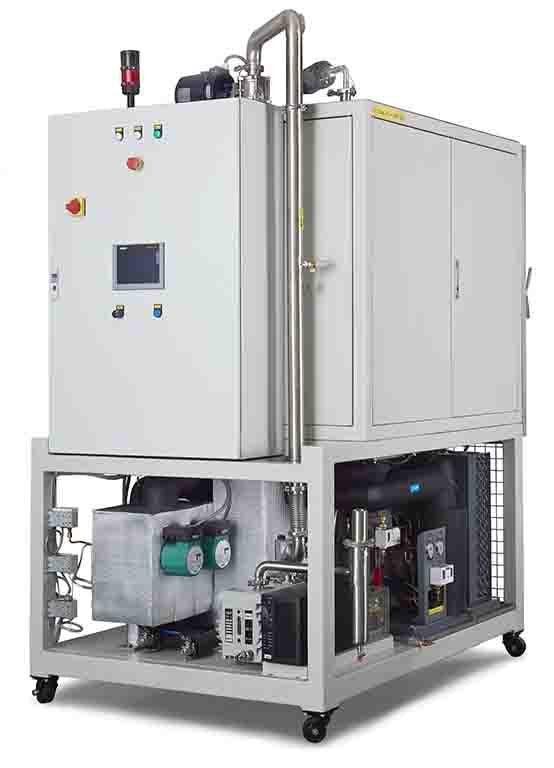

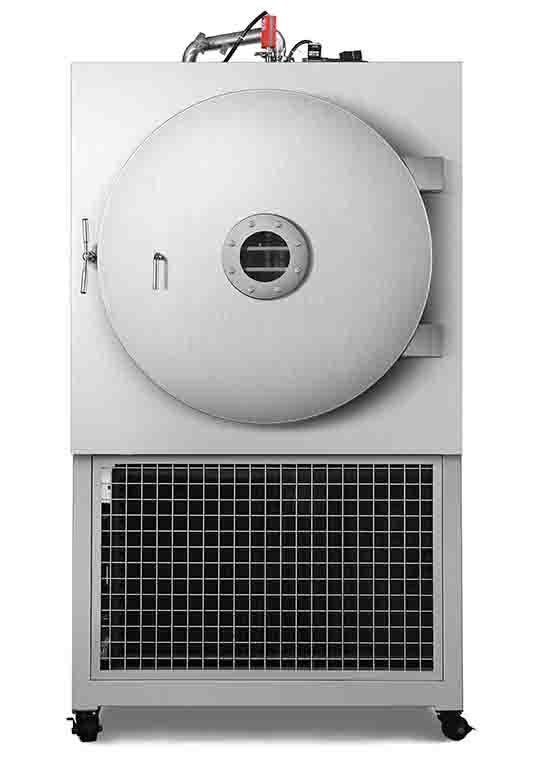

Xiros 2 High-Performance Freeze Dryer for Demanding Production

The Xiros 2 Freeze Dryer is a high-performance, configurable freeze-drying system engineered for demanding professional applications. Built around proven pharmaceutical-industry technology, the Xiros platform has more than 5,000 systems sold worldwide, making it a reliable choice for organizations that prioritize repeatable performance, process control, and long-term equipment reliability.

The Xiros 2 combines a powerful refrigeration system, high-performance vacuum technology, stainless steel construction, and advanced control options in one professional freeze-drying platform. With a 10 kg maximum ice capacity, a condenser temperature down to -45°C, and shelf configurations of up to seven shelves, it provides a compact yet highly capable solution for controlled freeze-drying processes.

For operations requiring additional compliance or customization, the Xiros 2 can be configured with EURO or FDA GMP-ready options, pressure-vessel certifications, advanced vacuum equipment, and electronic process controls.

Key Benefits

• High-performance pharmaceutical-grade freeze-drying technology
• 10 kg maximum ice capacity
• Ice condenser temperature down to -45°C
• Up to 7 shelves with 51 mm upper radiant shelf spacing
• ETL and CE rated
• FDA GMP-ready and EURO GMP-ready options
• Modular refrigeration architecture
• Advanced vacuum system with mechanical booster option
• Optional 21 CFR Part 11 and cGAMP compliance
• Recipe management and authority-level access control

Advanced Vacuum, Refrigeration & Stainless Steel Construction

Reliable freeze drying starts with precise control over temperature and vacuum. The Xiros 2 uses a vacuum pump and mechanical booster pump configuration on larger systems to achieve a deeper vacuum, with vacuum levels capable of reaching below 0.01 mbar under appropriate conditions.

An automatic vacuum anti-suck valve helps preserve the product’s vacuum environment during a power outage. For applications where minimizing potential contamination from vacuum-oil backstreaming is important, an Edwards or equivalent dry vacuum pump can be specified.

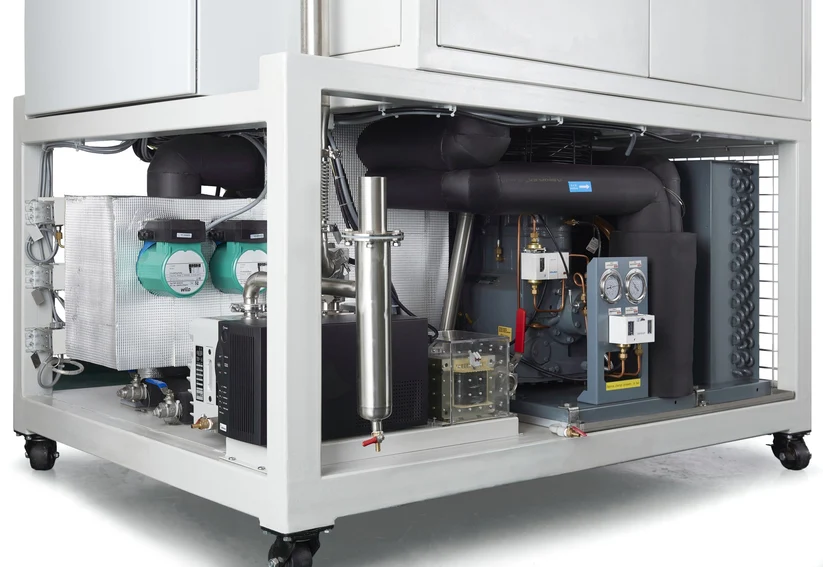

The refrigeration system uses a modular architecture designed for dependable, efficient operation. Independent compressor circuits can be configured to cool the shelves or condenser, while world-class refrigeration components are designed for long service life. The system uses environmentally friendlier HFC refrigerant, with optional liquid-nitrogen cooling available for specialized requirements.

Inside the system, polished AISI-304L stainless steel condenser coils provide high-performance heat transfer and a durable, cleanable construction. Rounded chamber edges and corners minimize difficult-to-clean areas, making the Xiros 2 well suited to environments where sanitation and maintenance are critical.

Optional chamber/condenser isolation can also support pressure-rise testing, allowing operators to help verify process completion in situ.

Intelligent Freeze-Drying Control With GMP-Ready Options

The Xiros 2 is designed for facilities that need more than basic freeze-drying controls. Its configurable control architecture supports manual or automatic operation, recipe management, user access levels, and process monitoring.

For regulated environments, optional 21 CFR Part 11 and cGAMP compliance capabilities can provide the electronic controls and documentation features required for more demanding production workflows. Audit-trail functionality records user actions and changes to process parameters, while authority-level access control helps ensure that only authorized personnel can modify critical settings.

The control platform can be configured around leading industrial PLC and touchscreen technologies, including Omron, Siemens, and Allen-Bradley, depending on the selected configuration.

With a footprint of approximately 2000 × 1400 × 2640 mm and an approximate weight of 2,500 kg, the Xiros 2 is built as serious production equipment rather than a consumer-grade freeze dryer. Its combination of customizable hardware, advanced process controls, robust stainless-steel construction, and proven pharmaceutical-industry design makes it a strong choice for professional facilities seeking dependable freeze-drying performance.

Technical Specifications

• Model: Xiros 2
• HGS SKU: 10407001
• Power: 480V, 60 Hz, 3-phase, 19 kW
• Equipment Size: 2000 × 1400 × 2640 mm
• Approx. Weight: 2,500 kg
• Maximum Ice Capacity: 10 kg
• Minimum Ice Condenser Temperature: -45°C

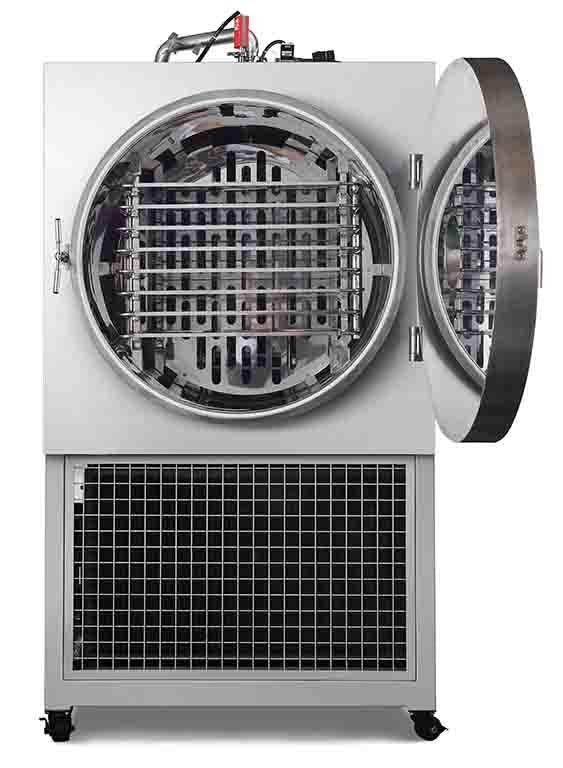

• Shelf Stack: Up to 7 shelves
• Upper Radiant Shelf Spacing: 51 mm
• Safety Rating: ETL and CE rated
• GMP Options: EURO GMP-ready / FDA GMP-ready
• Vacuum: Vacuum pump + mechanical booster configuration available
• Controls: Manual or automatic
• Control Options: Omron / Siemens / Allen-Bradley PLC and touchscreen
• Compliance Options: 21 CFR Part 11 and cGAMP
